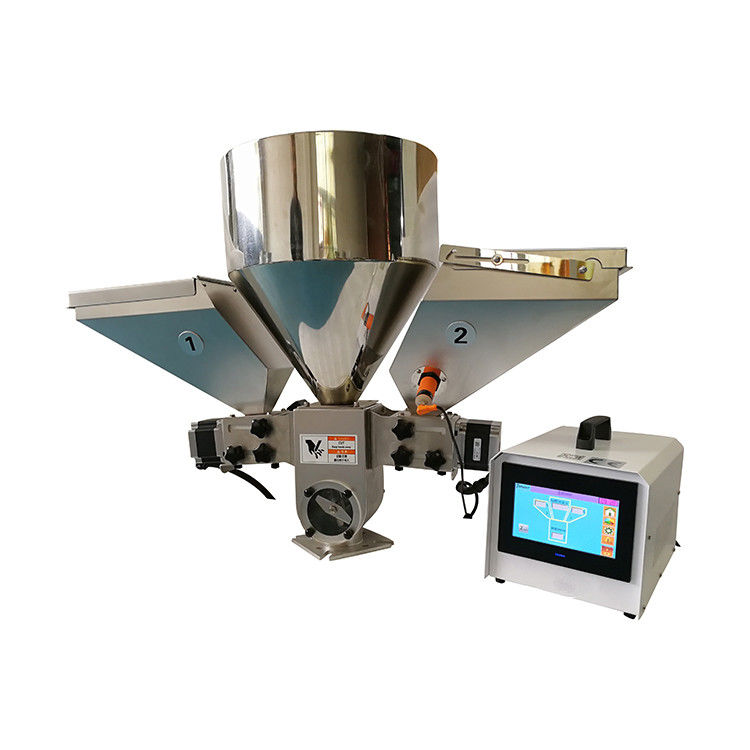

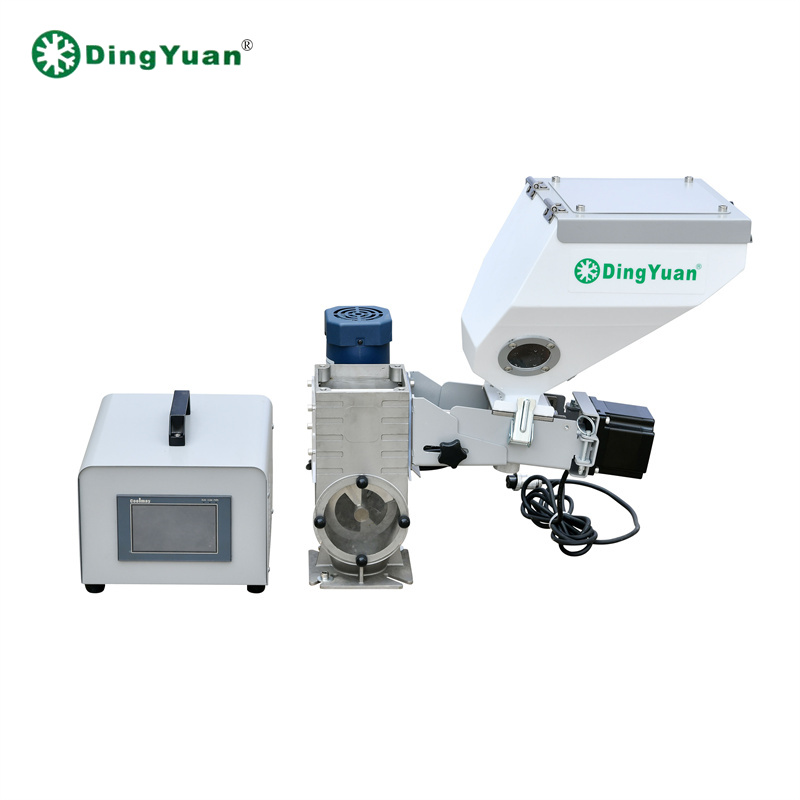

Volumetric Doser

Description

DY-CD series volumetric dosers are adoptable to auto-proportion mixing of new materials, regrinds, masterbatch or additive, are suitable for injection, extrusion or blow molding field. A stepper motor is used in this series, according to the set mixing proportion, the microprocessor accurately controls rotation of the high precise dosing screw to squeeze out materials with an deviation of +/-1%. This doser can connect with various molding machine signals in synchronicity, to ensure the stability of the products.

Models: DY-CD12

Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability
Using the high accuracy hybrid stepping motor, measurement accuracy and output scope
Motor drive directly, without gearbox, long service life, maintenance-free
The adopted PLC panel shows reliable performance and easy maintenance
It can store 50 groups formula, and it can quickly start the machine
Dosing screws are chrome plated for durability
The side of the base has a windowing device for easy observation of raw materials

机型 Model	DY-CD12
马达功率 Motor Power(KW)	0.04
马达转速 Rotory Speed(RPM)	1.8~300
搅拌器功率 Mixer Power(KW)	0.09
螺杆外径 Screw Dia(MM）	12
输出量 Output Capacity（KG）	0.05~20
W(MM)	450
D(MM)	560
H(MM)	310
净重 NW	25
