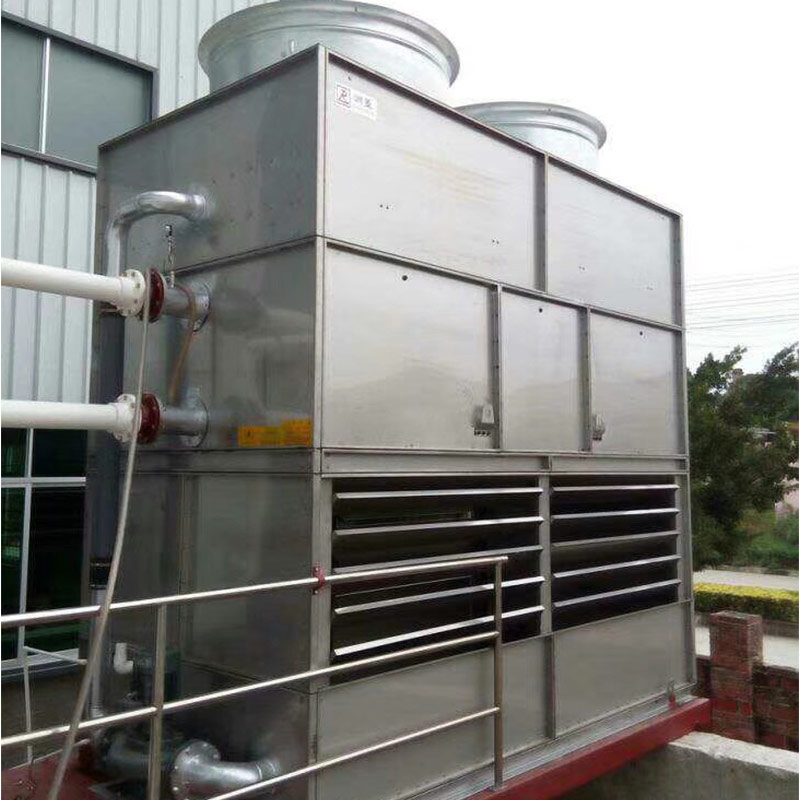

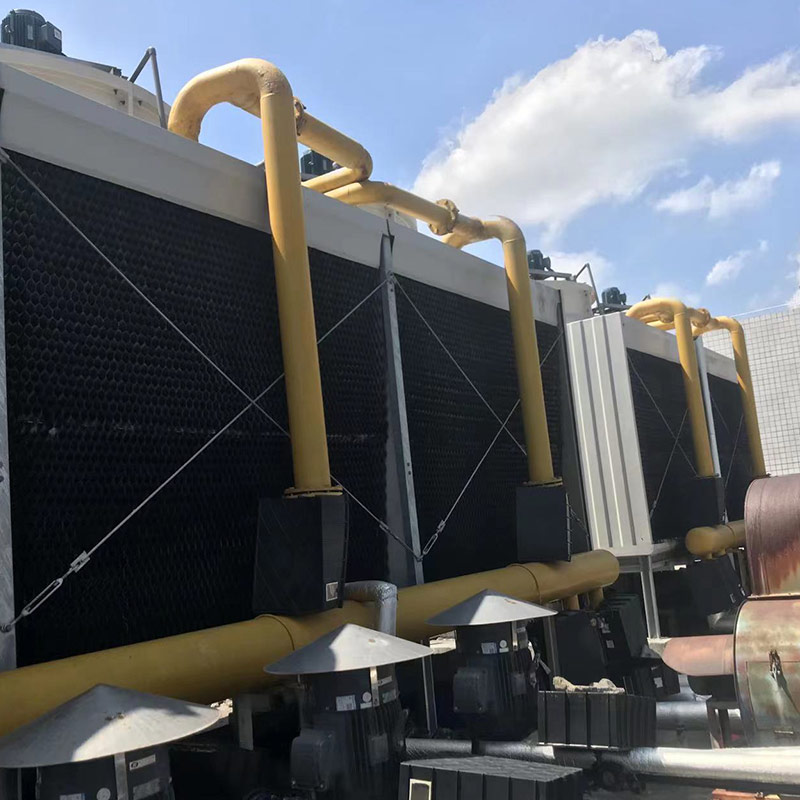

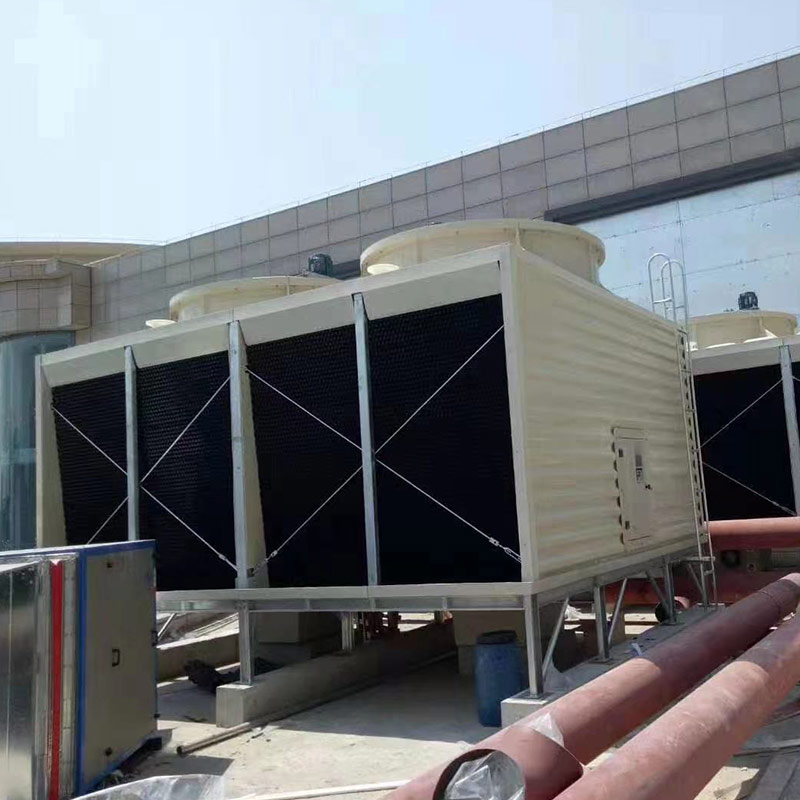

Square Cooling Tower

Description

Dingyuan cooling tower series is a specialized heat exchanger in which air and water are brought into direct contact with each other in order to reduce the water’s temperature. As this occurs, a small volume of water is evaporated, reducing the temperature of the water being circulated through the tower.

Models: LD-150L

1. Adopt high quality PVC heat dissipation films
2. The designed shape of films effectively prolong the touching time between high temperature water and the cooling air, therefore the cooling effect is excellent
3. The tower shell, featuring anti--corrosion, strong ability of resistance of vile weather and beautiful appearance made of high strength glass fiber
4. The rotation part and connection area is made of high quality raw materials, that greatly improves the service life and connection strength
5. Counter-flow type

型号 Model		LD-150L
水流量 Water Flow Rate(m³/h) WBT	28℃	150
水流量 Water Flow Rate(m³/h) WBT	27℃	175
水压 Water Press	×104 PA	3.8
尺寸 Dimensions (MM)	W	3800
	L	2596
	H	3700
	塔高 Tower Height	3700
	风筒高 Fan Stack Height	2300
风机 Air Blower (MM/SET)	直径 Diameter	700
风机 Air Blower (MM/SET)	电机 Motor	4.0*1
重量 Weight (T)	净重 Net Weight	1.18
重量 Weight (T)	运行重 Working Weight	3.55
