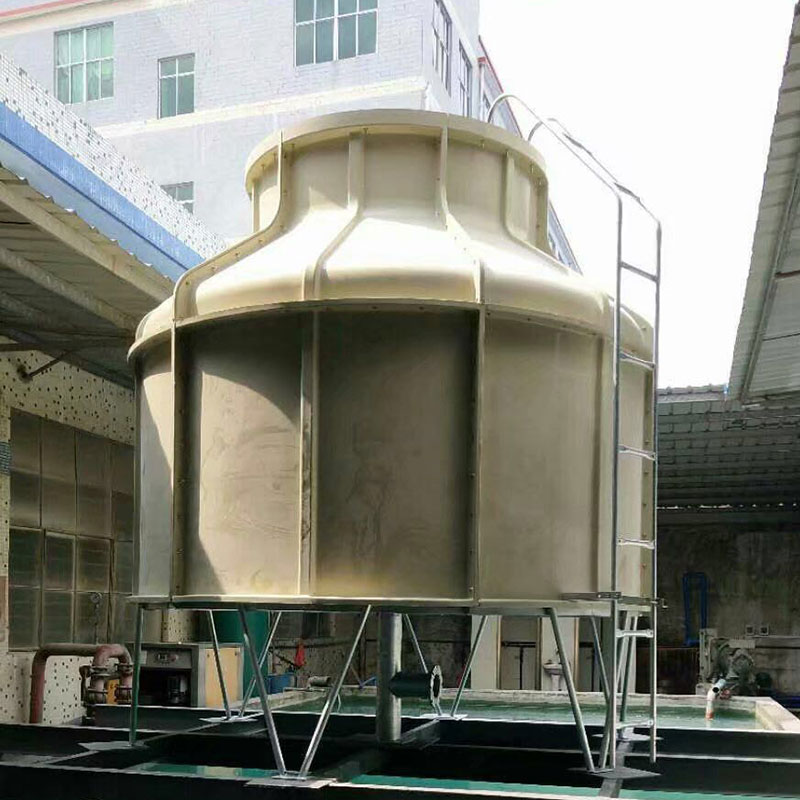

Round Cooling Tower

Description

Dingyuan cooling tower series is a specialized heat exchanger in which air and water are brought into direct contact with each other in order to reduce the water’s temperature. As this occurs, a small volume of water is evaporated, reducing the temperature of the water being circulated through the tower.

Models: RTA50T

1. Adopt high quality PVC heat dissipation films
2. The designed shape of films effectively prolong the touching time between high temperature water and the cooling air, therefore the cooling effect is excellent
3. The tower shell, featuring anti--corrosion, strong ability of resistance of vile weather and beautiful appearance made of high strength glass fiber
4. The rotation part and connection area is made of high quality raw materials, that greatly improves the service life and connection strength
5. Counter-flow type

型号 Model		RTA50T
水流量 Water Flow	m³/h	39.24
风量 Wind Volume	CMM	330
音量 Sound Volume	Dba	57.5
电机 Motor	KW	1.5
净重 Net Weight	KG	190
工作重量 Working Weight	KG	975
塔高 Tower Height	MM	2125
壳身 Casing	MM	1300
入风口 Wind Entrance	MM	245
水盆 Water Base	MM	400
出入水口 Water Lnlter/Outlet	WI/WO	80/80
风扇直径 Fan Diameter	MM	930
底座直径 Base Diameter	MM	1900
溢水口 Over Flow/Drain	OF/DR	25/25
浮波/补水 Float/Supply	FV/QS	15/15
基础高度 Basic Height	MM	300
基础宽度 Basic Width	MM	300
水缸基础 Water Cabinet Base	MM
中心直径 Central Diameter	MM	1350
螺丝规格 Screw Specification	BC	M12
