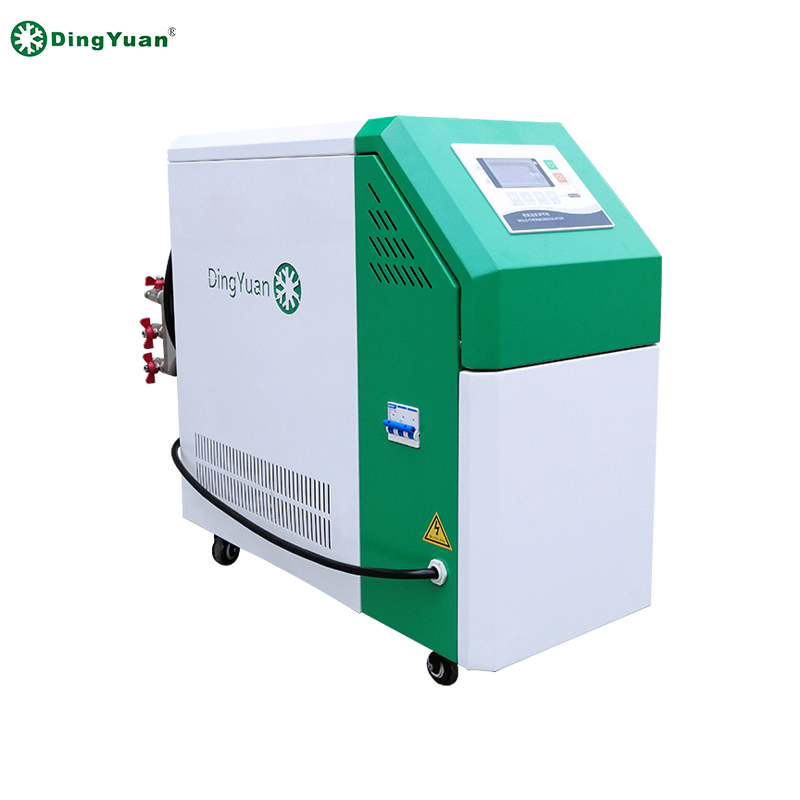

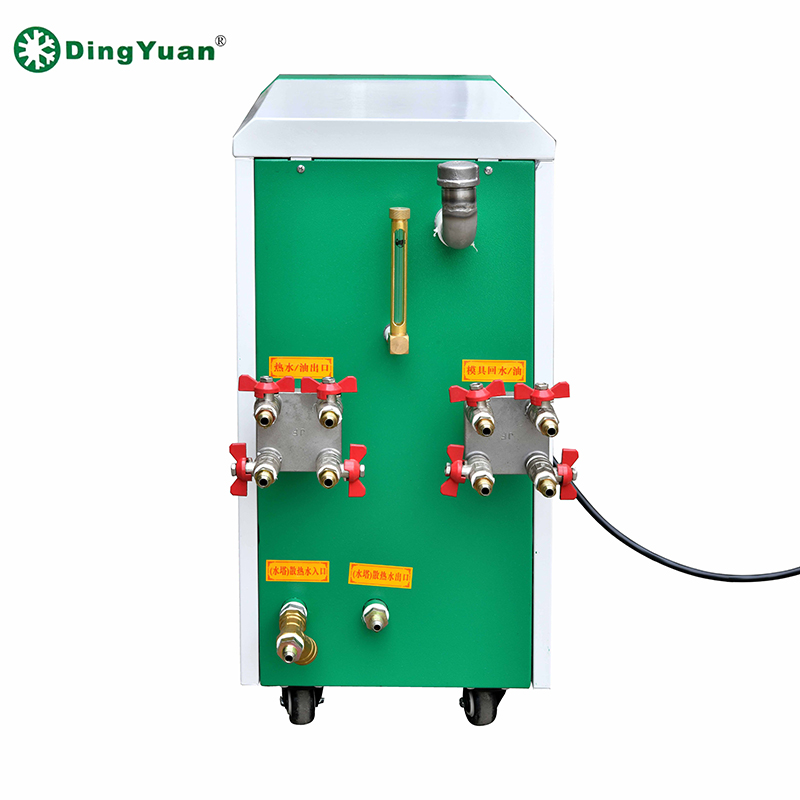

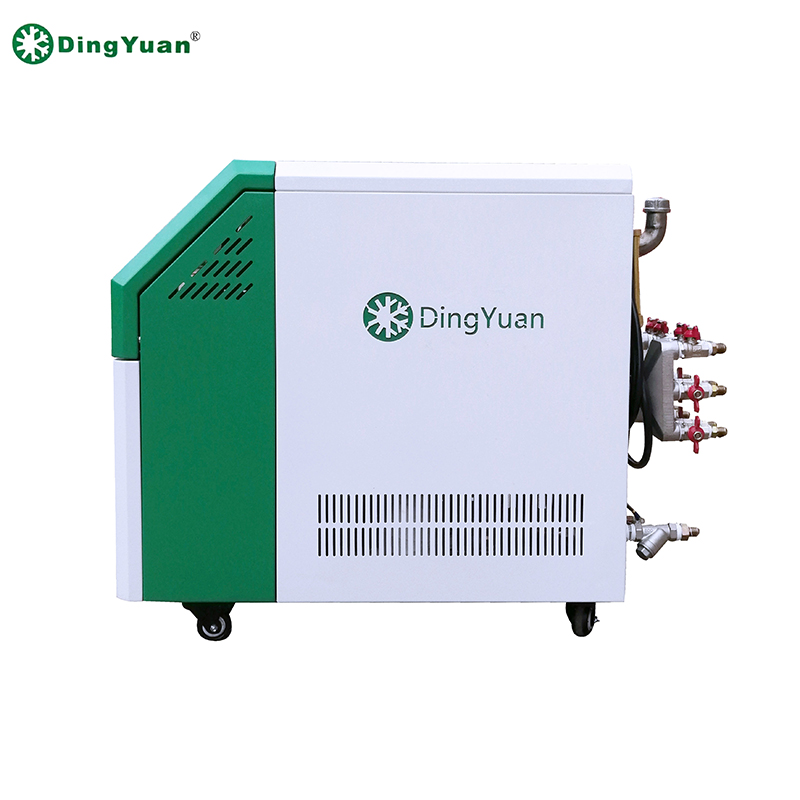

High Temperature Oil Temperature Controller

Description

This series can be used effectively to solve many defects on polymer molding, such as weld marks, flow marks, ruffles, silver marks and enhance products' surface with glossy like mirror. It is unnecessary for secondary processing on spraying to products, increasing the rate of good finished products by 20% to 30%. It can solve the surface shrinkage of plastic products completely to make high quality of products appearance.For thin wall molding, it can improve the melted resin fluidity faster during the polymer filling (packing) phase for ensuring products' quality & strength. The cycle time for thickness parts molding will be reduced up to 60% to enhance the productivity greatly.

Models: DY-MTC6H-O

1. PID controller with deviation within ±0.1℃.
2. Intelligent control panel display--shows temperatures of outlet and inlet and each specific Error on(It is clear to know each Error) and provides visualized and direct setting.
3. Adopt the indirect cooling, the highest temp can reach 200~350℃
4. Adopt microcomputer control panel, it is easy to operate and maintenance
5. Stainless steel water tank is durable end keep from the trouble of leakage and rust
6. With recycling oil run-way
7. Exquisite appearance with small footprint
8. Equipped with the buzzer for the alarm
9. Our MTC has multiple alarm and protection function as the following:
①　Phase sequence error alarm
②　Three-phase imbalance protection
③　Lack oil protection
④　Pump overload protection
⑤　High pressure protection, safety pressure relieving, automatic water supplying and air exhausting.
⑥　Overheat alarm
⑦　Temp high alarm
⑧　Temp low alarm
⑨　Temp different high alarm
⑩　Automatic air exhausting at starts up
⑪　Automatic cooling at turn-off

Model	DY-MTC6H-O
Temperature Control Accuracy	P.I.D ± 0.1℃
Heat Transfer Medium	Heat Transfer Oil
Cooling Method	Indirect Cooling
Power Supply	AC200V/380V/415V/50HZ 3Phase
Max Temperature(℃)	200~350
Heating Power(KW)	6
Pump Power(HP)	1
Pump Flow(L/Min)	165
Pump Pressure(KG)	2
Circulating Water Pipe(Inch)	3/8*4
Size(MM)	800410630
Weight	54
