Gravimetric Blender

Description

Gravimetric blender is an item of industrial equipment used in the plastics industry to accurately weigh two or more components and then mix them together prior to processing in an injection molding machine, plastics extrusion, or blow moulding machine.

A typical application of a gravimetric blender would be mixing virgin plastic granules, recycled plastic, and masterbatch (an additive used to colour plastics) together.

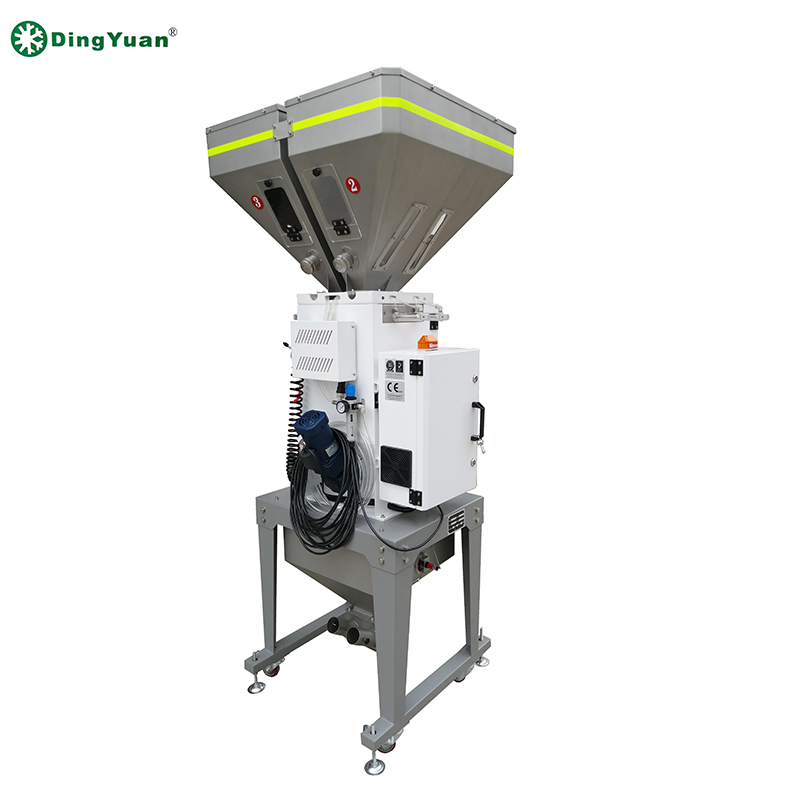

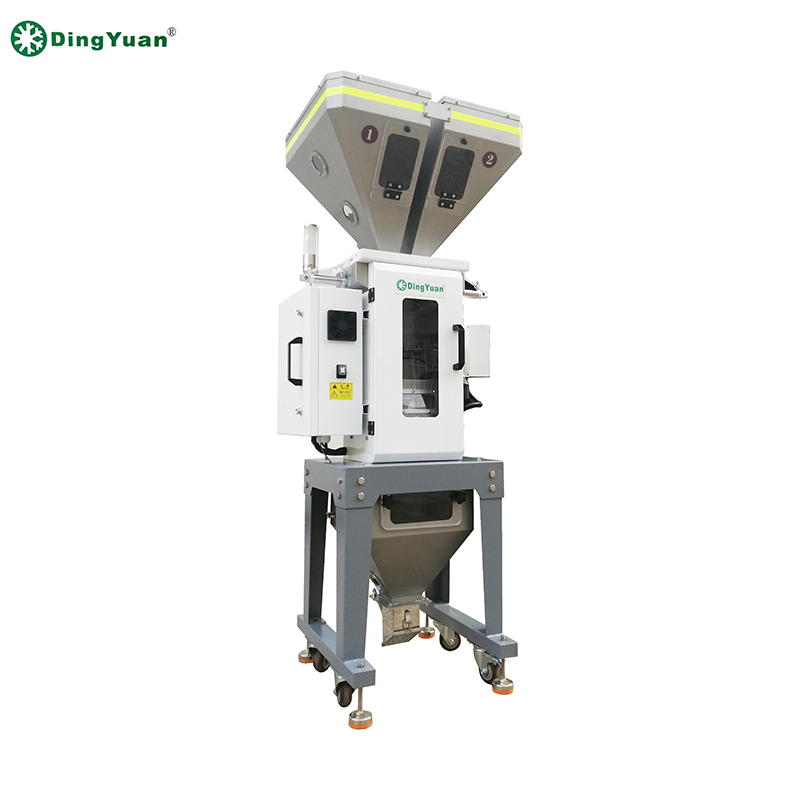

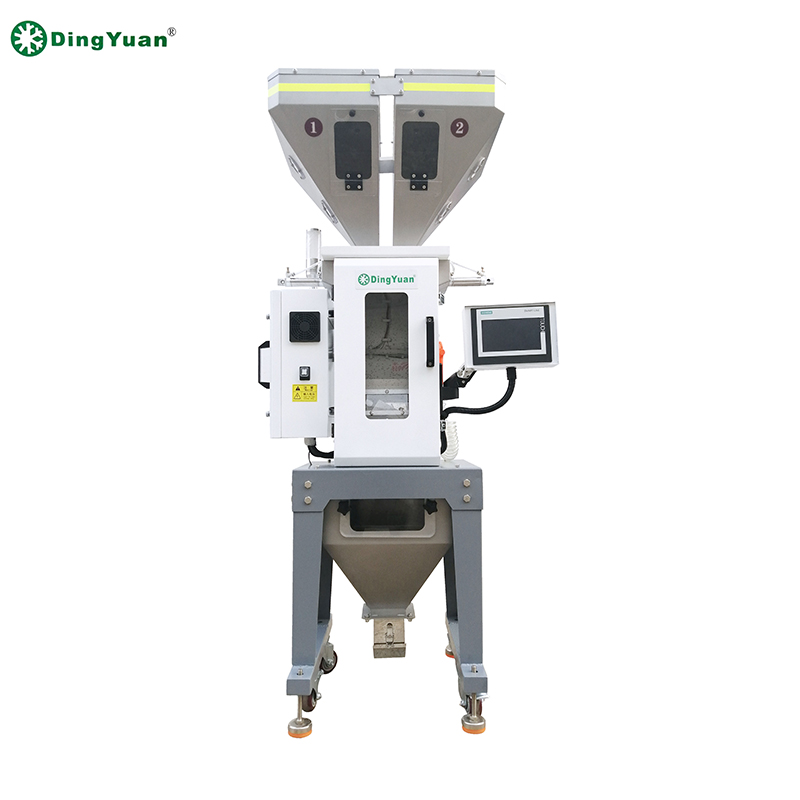

Models: DY-GB50

1. +/-0.1% metering accuracy
2. All parts accessible for easy cleaning
3. Suitable for processing two to four and more components simultaneously
4. PLC controller, reliable performance, convenient maintenance
5. Adopt advanced control algorithm, autonomous optimization, automatic calibration and shaking prevent function, ensure the best accuracy
6. Color chart shown, 7″ Colored man-machine interface touch screen operation, three languages on-line switching
7. All raw material contact parts are made of stainless steel to prevent materials being contaminated
8. Can be directly mounted on the machine or optional base frame installed in machine side
9. Equipped with main power switch
10. Equipped with buzzer, alarm light alarm
11. Graphic operation is simple and understand, keep a view, maneuverability easily stronger. And it support multiple languages
12. With formula storage function, up to 100 groups of recipes can be stored
13. With hierarchical security password to control and alarm history recording function

Model	DY-GB50
Qty of group NO.	4
Mixing Capacity(kg)	50
Batch weight(kg)	1
Main material mixing range(%）	5~100
Additive mixing range（%）	0.5~10
Voltage	1Φ/220V/50Hz
Max.noise level(dB)	﹤75
W(MM)	605
D(MM)	640
H(MM)	1010
NW (Machine installation)	90
NW (Floor installation)	110
