Air cooled chiller

Description

The DY-FSC series industrial cooled chillers are widely used in many industries like: plastic and rubber manufacturing, electronic productions, electroplating, medical chemistry, ultrasonic cooling and printing business, etc. It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality. Dingyuan Industrial cooled chillers are with simple operation, reasonable design and superior quality with more than one hundred different models. It is applicable to the industry that requires flow of precisely controlled chilled water, and considered as indispensable equipment for modern industry.

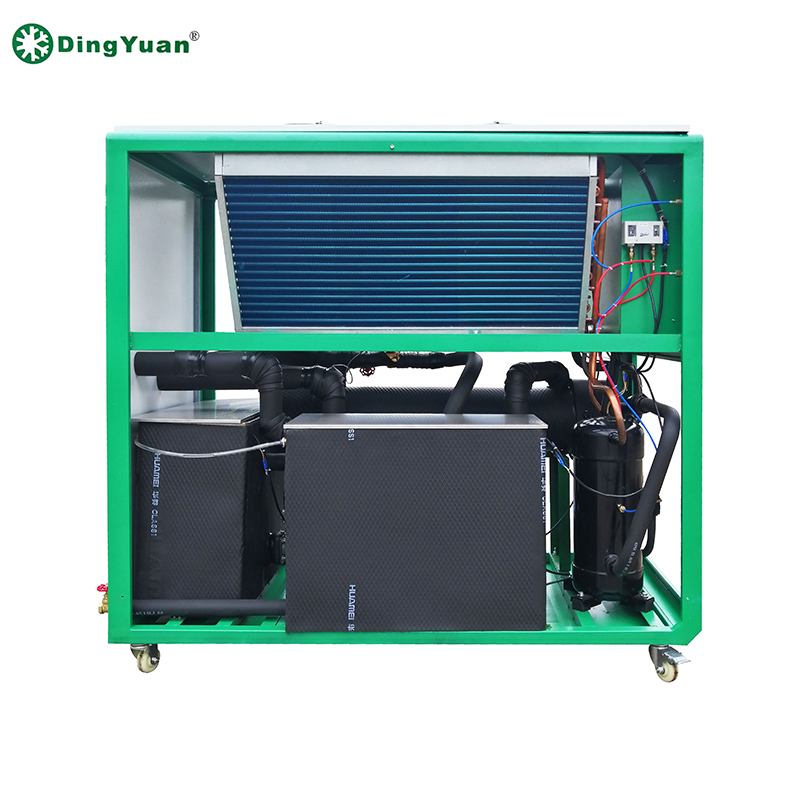

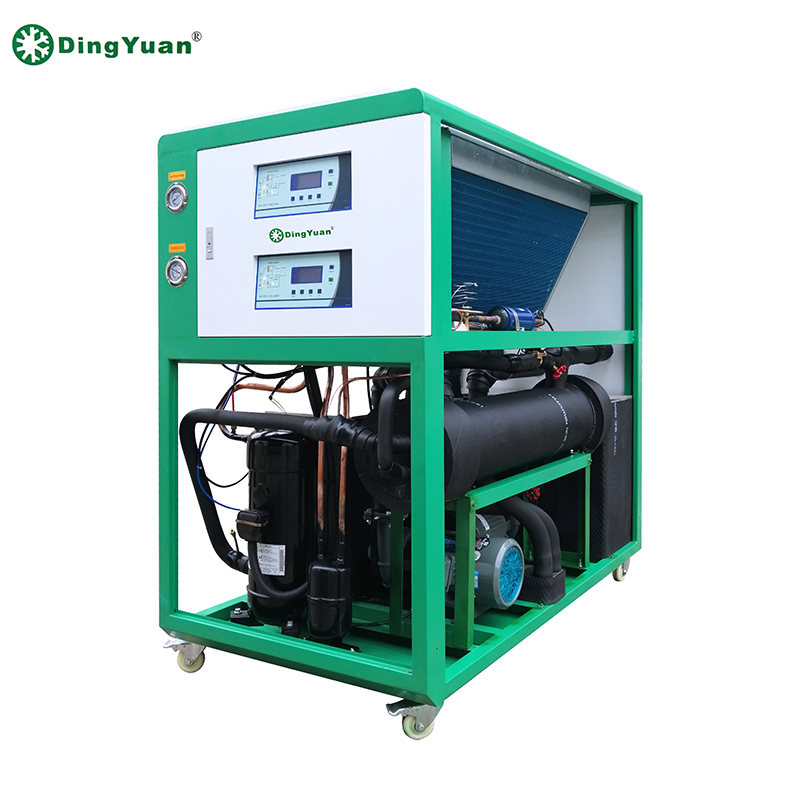

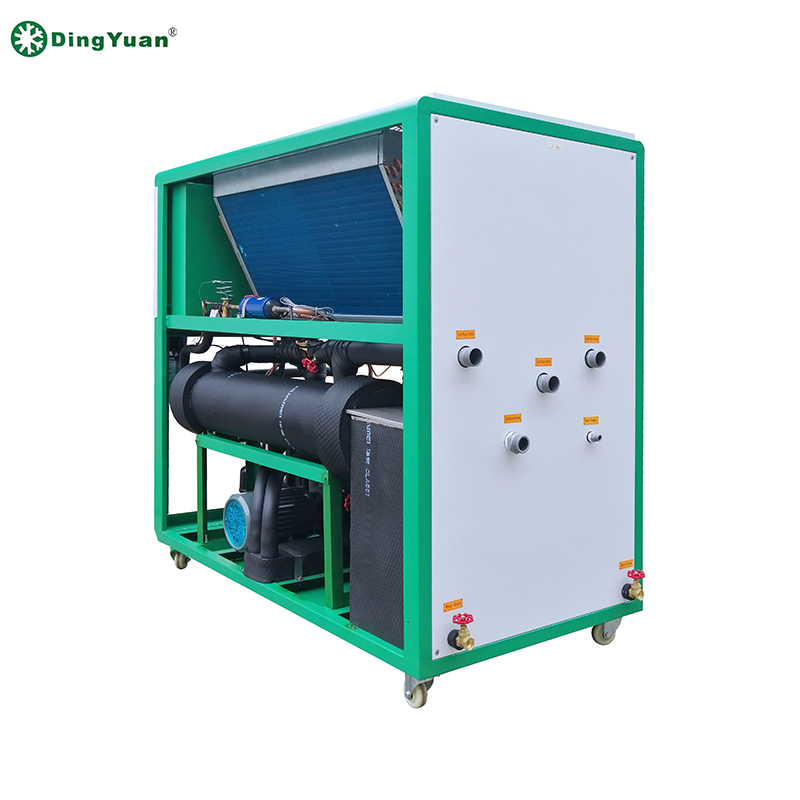

Models: DY-FSC10A-2

DY-FSC10A-2

1. The dual temperature chiller is customized according to the temperature and cooling capacity by the customer. It can provide two different temperatures on one machine at the same time, saving cost and space.
2. The energy efficiency degree has already been above the first level of national energy efficiency index.
3. Working stably, safely and reliably under the environment temperature of 0~45℃
4. P.I.D. Microprocessor control--easy to operate, accurately control temperature range from 3~50℃. Precision: ±0.1℃
5. Brandnew imported famous brand compressor
6. Well-known brand water pump
7. Famous brand electricity and other spare parts
8. Own brand independently designed and developed high efficiency condenser and evaporator to ensure super refrigeration
9. Frequency high power, big air flow rate and low-noise cooling fan--ensures nice heating dissipation
10. Well designed and reasonable pipelines--ensures power supply and saves energy.
11. Intelligent control panel display--shows temperatures of outlet and inlet chilled water and each specific Error on(It is clear to know each Error) and provides visualized and direct setting
12. Industrial designed-elegant and ergonomic.
13. Comprehensive safety protection system, main nine types protection function shown as the following:
①　Overheat alarm
②　Phase sequence error alarm
③　Motor or compressor overload alarm
④　Three-phase imbalance protection
⑤　Over current protection
⑥　Ground Pin Current alarm
⑦　Lack water protection
⑧　High pressure too high protection
⑨　Low pressure too low protection

Cooling Capacity: 29KW / 24969kcal/h / 8.25tons / 99kbtu/h
Total Input Power: 8.73KW
Voltage: 3Phase/380V/50Hz
Chiller Temperature Range: 5-35℃(Two different temperatures)
SUS Tank capacity: 200L
Refrigerant Type: R407/R22
Compressor power: 7.5KW/10HP
2set Water Pump; 1set main Pump power: 1.1KW/2HP; Pump head: 19m; Pump Flow: 25m³/hr
Another condensate water Pump power: 0.75KW/1HP; Pump head: 16m; Pump Flow: 12m³/hr
Fan Dia & Qty: 450*2pcs; Cooling air flow rate: 11160m³/hr
Condenser: Finned condenser
Evaporator: Tank-coil type evaporator (Can be customized Shell and tube type evaporator)
Size: 1420*800*1500MM; Weight: 420kg

Remark: The above data of our standard type chiller, if you have different or other special request, such as: power supply(voltage/frequency/phase), pump pressure, water flow rate, water tank capacity and refrigerant gas, etc.), please feel free to contact us, we can customize for you.
